The Ultimate Truck Tyre Changer
The BRIGHT LC588S is a fast and efficient truck tyre changer. Swap out tubeless truck, agricultural and off-road tyres in minutes without breaking your back. A portable cabled remote control offers precision and saves you time.
This machine will save your back from the hard labour of manually changing heavy truck tyres.
Portable control unit
Simple controls and console let the operator safely monitor your tyre changing from the best angle.
Self-centering hydraulic clamping chuck
Clamp from either the center bore of the wheel or the inside of the wheel.
Super-duty electric hydraulic motor & hydraulic drive
This powerfully sophisticated, bi-directional hydraulic motor delivers smooth torque to the tyre changer at all times.
Sturdy spindle, chuck & mount / de-mount head
The entire assembly rotates, raises and lowers via easy-to-learn, simple-to-use operator controls.
Hydraulic sled carriage
Hydraulic sled carriage for positioning, bead breaking, mounting and demounting procedures.

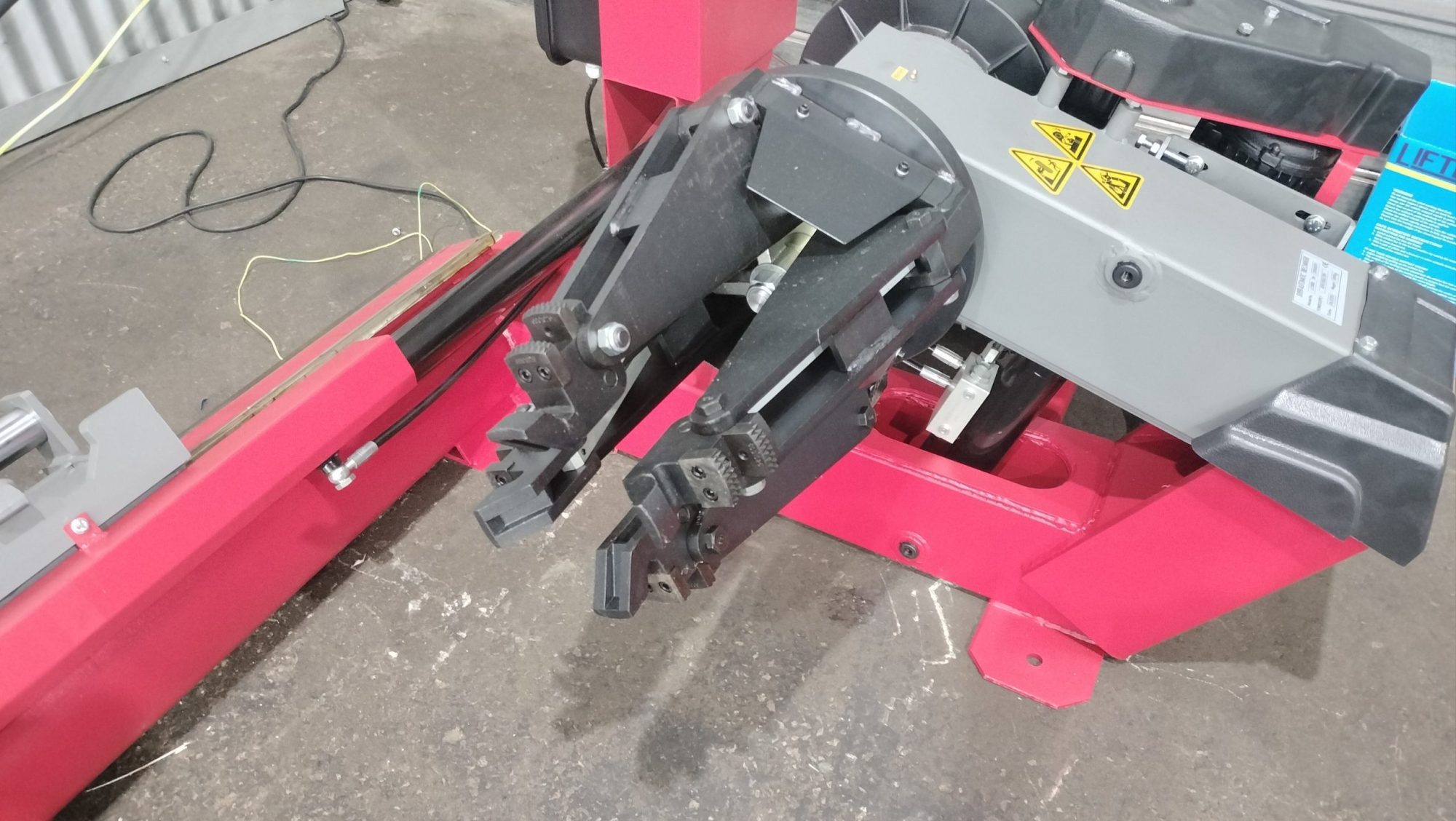

Spreader jaws
Hydraulically operated spreader-type jaws ensure secure clamping of virtually all rims and off-road style wheels.
Safe and easy to use
It’s simple: our sensible ergonomic design means easier operation for you and your technicians.
Massive chuck spindles
Huge spindle to handle the heaviest loads.
Built-in sturdiness
Sturdy spindle, chuck and mount / demount head hydraulically rotates, raises and lowers with simple operator controls.
A gentle touch
Very gentle on over-the-road tyres and tubeless tyres mounted on aluminium wheels.
* Use efficient electro-hydraulic-powered design for trucks, buses, tractors and other specialised machinery
* Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
* Self-centering hydraulic clamping chuck
* Heavy, tapered roller bearings, and a dual direction hydraulic motor provide smooth torque
* Quick positioning and locking mount / demount arm
* Hydraulic sliding carriage for positioning, bead loosening, mounting, and demounting procedures
* Single piece frame for superior rigidity
* Hydraulically operated spreader-type jaws ensure secure clamping of virtually all rims and off-road wheels.
* Massive chuck spindle handles the heaviest loads
* Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls
* Simple design is easy to use
* Very gentle on over-the-road tires and tubeless tires mounted on aluminium wheels
SPECIFICATION
> Pump Motor: 415V 3Ph 1.1 kw 50 Hz 1.5 HP
> Gearbox Motor: 415V 3 Ph 1.8 kw 50 Hz 2.4 HP
> Rim clamping capacity: 14 inch ~ 26 inch
> Max wheel assembly diameter: 59 inch
> Max wheel assembly width: 30 inch
> Operating pressure: 50 ~ 130 bar
> Noise level: < 75 dB
> Net Weight: 800KG
> Dimension: 165 (L) x 210 (W) x 90 (H)
