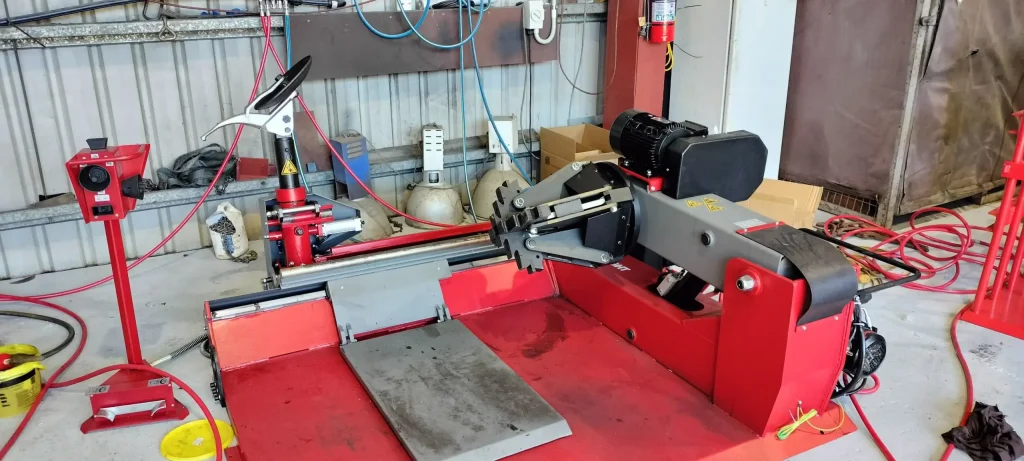

Heavy Duty Truck Earthmoving Equipment Tyre Changer- BRIGHT LC590

Uses efficient electro-hydraulic-powered design for trucks, buses, tractors and earthmoving equipment up to 56″ rims

* Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.

* Self-centreing hydraulic clamping chuck

* Heavy, tapered roller bearings, and a dual direction hydraulic motor provide smooth torque

* Quick positioning and locking mount / demount arm

* Hydraulic sliding carriage for positioning, bead loosening, mounting, and demounting procedures

* Single piece frame for superior rigidity

* Hydraulically operated spreader-type jaws ensure secure clamping of virtually all rims and off-road wheels.

* Massive chuck spindle handles the heaviest loads

* Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls

* Simple design is easy to use

* Very gentle on over-the-road tires and tubeless tires mounted on aluminium wheels

SPECIFICATION

> Pump Motor: 415V 3Ph 1.1 kw 50 Hz 1.5 HP

> Gearbox motor 2.4/3.0kw 415v-3ph 50hz(Dual Speed) 3.2/4.0hp

> Rim clamping capacity: 14 inch ~ 56 inch

> Max wheel assembly diameter: 86′ (2200mm)

> Max wheel assembly width: 43”(1100mm)

> Operating pressure: 50 ~ 150 bar

> Noise level: < 75 dB

> Net Weight: 1000KG

Package 2300x2100x1100 1100KG
